de.unikassel.android.sdcframework.data
Class SDCConfiguration

java.lang.Object
  de.unikassel.android.sdcframework.data.SDCConfiguration

All Implemented Interfaces:

SerializableData

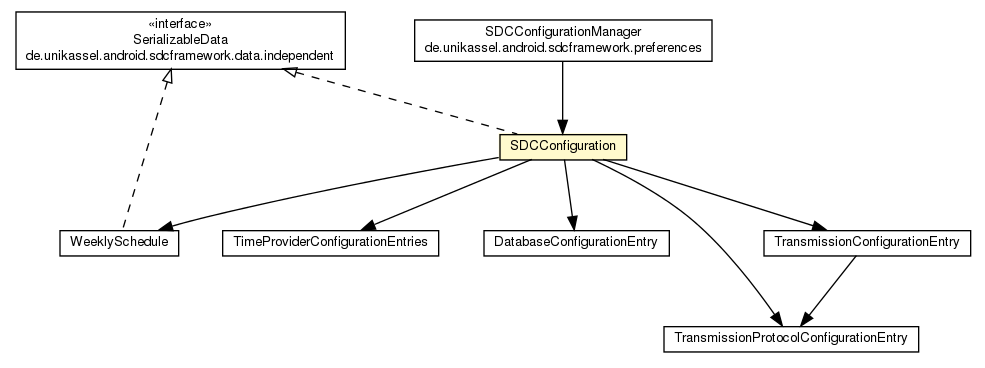

public final class SDCConfiguration
extends Object
implements SerializableData

This class is the serializable representation of the default configuration for the SDC framework.

For each available sensor it is necessary to configure a sensor configuration entry in the corresponding XML configuration file, which is located in the asset folder of the project.

An example for a valid SDC framework configuration file:

<sdcconfig>

<!-- the time providers configuration section -->
<providers>

<provider>ptbtime1.ptb.de<provider>

</providers>

<!-- the sensor configuration section -->
<sensors>

<sensor id="Accelerometer" enabled="true" frequency="10000" prio="Level4"/>
<sensor id="Bluetooth" enabled="true" frequency="60000" prio="Level3"/>
<sensor id="Wifi" enabled="true" frequency="60000" prio="Level2"/>
<sensor id="GPS" enabled="true" frequency="120000" prio="Level1"/>
<sensor id="GSM" enabled="true" frequency="60000" prio="Level0"/>

</sensors>

<!-- flag to indicate if sample broadcasting is enabled or not -->
<broadcastSamples>true</broadcastSamples>

<!-- flag to indicate if location information is added to each sample -->
<addSampleLocation>true</addSampleLocation>

<!-- flag to indicate if samples shall be stored for transmission -->
<storeSamples>true</storeSamples>

<!-- flag to indicate if samples shall be transfered to a remote server from time to time -->
<transferSamples>true</transferSamples>

<!-- flag to indicate if location information shall be stored in each sample -->
<addSampleLocation>true</addSampleLocation>

<!-- the database configuration section -->
<dbConfig>

<!-- the maximum database size in bytes -->
<maxSize>10485760</maxSize>

<!-- the database full strategy chain configuration ( valid values are: wait_delete_notify or wait_notify_stopservice ) -->
<dbFullStrategy>wait_delete_notify</dbFullStrategy>

<!-- the wait time used by the wait strategy ( in milliseconds ) -->
<waitStrategyMillis>10000</waitStrategyMillis>

<!-- the record count to delete used by the sample deletion strategy -->
<delStrategyRecordCount>1000</delStrategyRecordCount>

<!-- the flag indicating if sample deletion is done for lower priorities first by the sample deletion strategy ( if true the oldest samples with the lowest priority will be selected first for deletion, otherwise just the oldest samples ) -->
<delStrategyUsePrio>true</delStrategyUsePrio>

</dbConfig>

<!-- the transmission configuration section -->
<transferConfig>

<!-- the minimum count of samples for a single transmission -->
<minSampleCount>100</minSampleCount>

<!-- the maximum count of samples for a single transmission -->
<maxSampleCount>100</maxSampleCount>

<!-- the minimum transmission frequency in seconds -->
<minTransferFrequency>3600</minTransferFrequency>

<!-- the archive type to use for file transmission -->
<archiveType>zip</archiveType>

<protocolConfig>

<!-- the URL to transfer files to -->
<url>http://localhost</url>

<!-- the user name for remote authentication -->
<authName>Karli</authName>

<!-- the user password for remote authentication -->
<authPassword>unknown</authPassword>

<!-- the transfer strategy to use ( e.g. just any available wlan connection )-->
<transferStrategy>wlan</transferStrategy>

</protocolConfig>

</transferConfig>

</sdcconfig>

See Also:

SensorConfigurationEntry, DatabaseConfigurationEntry, SDCConfigurationManager

Field Summary

private Long	broadcastFrequency The broadcast frequency in milliseconds.
private DatabaseConfigurationEntry	databaseConfiguration The database configuration
private Boolean	isAddingSampleLocation The flag to configure that each sample gets a location fix added
private Boolean	isBroadcastingSamples The flag for the service sample broadcast behavior
private Boolean	isSamplingEnabled The flag for the sampling enabled state
private Boolean	isStoringSamples The flag for the service persistent storage behavior
private Boolean	isTransmittingSamples The flag for the service transmission behavior
private TransmissionProtocolConfigurationEntry	logTransferConfiguration The log file transfer configuration
private List<SensorConfigurationEntry>	sensorConfigurations The list of available sensors in the SDC service
private TimeProviderConfigurationEntries	timeProviderConfiguration The time provider entries
private TransmissionConfigurationEntry	transmissionConfiguration The transmission service configuration
private WeeklySchedule	weeklySchedule The weekly time schedule for the service.

Constructor Summary

SDCConfiguration()
Constructor

Method Summary

Long	getBroadcastFrequency() Getter for the broadcast frequency
DatabaseConfigurationEntry	getDatabaseConfiguration() Getter for the database configuration
List<SensorConfigurationEntry>	getListSensorConfigurations() Getter for the sensorConfigurations
TransmissionProtocolConfigurationEntry	getLogTransferConfiguration() Getter for the logTransferConfiguration
TimeProviderConfigurationEntries	getTimeProviderConfigEntries() Getter for the NTP time provider entries
TransmissionConfigurationEntry	getTransmissionConfiguration() Getter for the transmissionConfiguration
WeeklySchedule	getWeeklySchedule() Getter for the weekly schedule.
Boolean	isAddingSampleLocation() Getter for the flag to configure location fix per sample
Boolean	isBroadcastingSamples() Getter for the flag for sample broadcasts behavior
Boolean	isSamplingEnabled() Getter for the isSamplingEnabled flag
Boolean	isStoringSamples() Getter for the flag for persistent storage behavior
Boolean	isTransmittingSamples() Getter for the isTransmittingSamples
void	setBroadcastFrequency(Long broadcastFrequency) Setter for the broadcast frequency
void	setBroadcastingSamples(Boolean isBroadcastingSamples) Setter for flag for sample broadcasts behavior
void	setDatabaseConfiguration(DatabaseConfigurationEntry databaseConfiguration) Setter for the database configuration
void	setIsAddingSampleLocation(Boolean isAddingSampleLocation) Setter for the flag to configure location fix per sample
void	setIsSamplingEnabled(Boolean isSamplingEnabled) Setter for the isSamplingEnabled flag
void	setListSensorConfigurations(List<SensorConfigurationEntry> sensorConfigurations) Setter for the sensorConfigurations
void	setLogTransferConfiguration(TransmissionProtocolConfigurationEntry logTransferConfiguration) Setter for the logTransferConfiguration
void	setStoringSamples(Boolean isStoringSamples) Setter for the flag for persistent storage behavior
void	setTimeProviderConfigEntries(TimeProviderConfigurationEntries timeProviders) Setter for the NTP time provider entries
void	setTransmissionConfiguration(TransmissionConfigurationEntry transmissionConfiguration) Setter for the transmissionConfiguration
void	setTransmittingSamples(Boolean isTransmittingSamples) Setter for the isTransmittingSamples
void	setWeeklySchedule(WeeklySchedule weeklySchedule) Setter for the weekly schedule.
String	toXML() Serialization from the type to it's XML representation

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

timeProviderConfiguration

private TimeProviderConfigurationEntries timeProviderConfiguration

The time provider entries

sensorConfigurations

private List<SensorConfigurationEntry> sensorConfigurations

The list of available sensors in the SDC service

isBroadcastingSamples

private Boolean isBroadcastingSamples

The flag for the service sample broadcast behavior

broadcastFrequency

private Long broadcastFrequency

The broadcast frequency in milliseconds.

isSamplingEnabled

private Boolean isSamplingEnabled

The flag for the sampling enabled state

isAddingSampleLocation

private Boolean isAddingSampleLocation

The flag to configure that each sample gets a location fix added

isStoringSamples

private Boolean isStoringSamples

The flag for the service persistent storage behavior

isTransmittingSamples

private Boolean isTransmittingSamples

The flag for the service transmission behavior

databaseConfiguration

private DatabaseConfigurationEntry databaseConfiguration

The database configuration

transmissionConfiguration

private TransmissionConfigurationEntry transmissionConfiguration

The transmission service configuration

logTransferConfiguration

private TransmissionProtocolConfigurationEntry logTransferConfiguration

The log file transfer configuration

weeklySchedule

private WeeklySchedule weeklySchedule

The weekly time schedule for the service.

Constructor Detail

SDCConfiguration

public SDCConfiguration()

Constructor

Method Detail

getListSensorConfigurations

public final List<SensorConfigurationEntry> getListSensorConfigurations()

Getter for the sensorConfigurations

Returns:

the sensorConfigurations

setListSensorConfigurations

public final void setListSensorConfigurations(List<SensorConfigurationEntry> sensorConfigurations)

Setter for the sensorConfigurations

Parameters:

sensorConfigurations - the sensorConfigurations to set

getTimeProviderConfigEntries

public TimeProviderConfigurationEntries getTimeProviderConfigEntries()

Getter for the NTP time provider entries

Returns:

the NTP time provider entries

setTimeProviderConfigEntries

public void setTimeProviderConfigEntries(TimeProviderConfigurationEntries timeProviders)

Setter for the NTP time provider entries

Parameters:

timeProviders - the NTP time provider entries to set

setBroadcastingSamples

public final void setBroadcastingSamples(Boolean isBroadcastingSamples)

Setter for flag for sample broadcasts behavior

Parameters:

isBroadcastingSamples - the flag for sample broadcasts behavior to set

isBroadcastingSamples

public final Boolean isBroadcastingSamples()

Getter for the flag for sample broadcasts behavior

Returns:

true if samples shall be broadcasted, false otherwise

getBroadcastFrequency

public Long getBroadcastFrequency()

Getter for the broadcast frequency

Returns:

the broadcast frequency

setBroadcastFrequency

public void setBroadcastFrequency(Long broadcastFrequency)

Setter for the broadcast frequency

Parameters:

broadcastFrequency - the broadcast frequency to set

setIsSamplingEnabled

public void setIsSamplingEnabled(Boolean isSamplingEnabled)

Setter for the isSamplingEnabled flag

Parameters:

isSamplingEnabled - the isSamplingEnabled flag to set

isSamplingEnabled

public Boolean isSamplingEnabled()

Getter for the isSamplingEnabled flag

Returns:

the isSamplingEnabled flag

isAddingSampleLocation

public Boolean isAddingSampleLocation()

Getter for the flag to configure location fix per sample

Returns:

the flag to configure location fix per sample

setIsAddingSampleLocation

public final void setIsAddingSampleLocation(Boolean isAddingSampleLocation)

Setter for the flag to configure location fix per sample

Parameters:

isAddingSampleLocation - the flag to configure location fix per sample

setStoringSamples

public final void setStoringSamples(Boolean isStoringSamples)

Setter for the flag for persistent storage behavior

Parameters:

isStoringSamples - the flag for persistent storage behavior to set

isStoringSamples

public final Boolean isStoringSamples()

Getter for the flag for persistent storage behavior

Returns:

true if samples will be stored persistent for transmission service

setTransmittingSamples

public final void setTransmittingSamples(Boolean isTransmittingSamples)

Setter for the isTransmittingSamples

Parameters:

isTransmittingSamples - the isTransmittingSamples to set

isTransmittingSamples

public final Boolean isTransmittingSamples()

Getter for the isTransmittingSamples

Returns:

the isTransmittingSamples

getDatabaseConfiguration

public final DatabaseConfigurationEntry getDatabaseConfiguration()

Getter for the database configuration

Returns:

the database configuration

setDatabaseConfiguration

public final void setDatabaseConfiguration(DatabaseConfigurationEntry databaseConfiguration)

Setter for the database configuration

Parameters:

databaseConfiguration - the database configuration to set

getTransmissionConfiguration

public final TransmissionConfigurationEntry getTransmissionConfiguration()

Getter for the transmissionConfiguration

Returns:

the transmissionConfiguration

getLogTransferConfiguration

public TransmissionProtocolConfigurationEntry getLogTransferConfiguration()

Getter for the logTransferConfiguration

Returns:

the logTransferConfiguration

setLogTransferConfiguration

public void setLogTransferConfiguration(TransmissionProtocolConfigurationEntry logTransferConfiguration)

Setter for the logTransferConfiguration

Parameters:

logTransferConfiguration - the logTransferConfiguration to set

setTransmissionConfiguration

public final void setTransmissionConfiguration(TransmissionConfigurationEntry transmissionConfiguration)

Setter for the transmissionConfiguration

Parameters:

transmissionConfiguration - the transmissionConfiguration to set

setWeeklySchedule

public void setWeeklySchedule(WeeklySchedule weeklySchedule)

Setter for the weekly schedule.

Parameters:

weeklySchedule - the weekly schedule to set

getWeeklySchedule

public WeeklySchedule getWeeklySchedule()

Getter for the weekly schedule.

Returns:

the weekly schedule

toXML

public final String toXML()
                   throws Exception

Description copied from interface: SerializableData

Serialization from the type to it's XML representation

Specified by:

toXML in interface SerializableData

Returns:

the XML representation of the type if successful, null otherwise

Throws:

Exception - if the schema for the object is not valid
