de.unikassel.android.sdcframework.data.independent

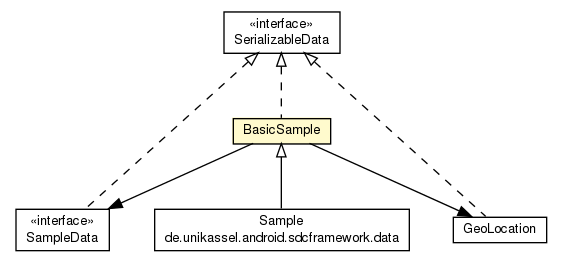

Class BasicSample

java.lang.Object
  de.unikassel.android.sdcframework.data.independent.BasicSample

All Implemented Interfaces:

SerializableData

Direct Known Subclasses:

Sample

public class BasicSample
extends Object
implements SerializableData

This is the framework independent serializable sample representation, which can be used in pure Java projects for deserialization.

A sensor device sample has

• a device identifier for the source sensor device,
• a sample time stamp and
• a transmission priority level corresponding to the configured device priority,
• a reference to the device specific sample data.

See Also:

Sample

Field Summary

static String	ACTION Our custom sample intent action
private SampleData	data The device specific sensor data
protected String	deviceIdentifier the sample device identifier
private GeoLocation	location The associated location
private int	priority the sample priority for transmission
protected long	timeStamp the sample time stamp
private Boolean	timeSynced flag if the sample time stamp is taken while time provider was in sync with NTP time.

Constructor Summary

BasicSample()
Constructor

Method Summary

boolean	equals(Object o)
static boolean	equals(Object o1, Object o2) Test method for equivalence of two objects, allowing both being null as well
SampleData	getData() Getter for the sample data
String	getDeviceIdentifier() Getter for the device identifier ( string representation of the sensors identifier )
GeoLocation	getLocation() Getter for the location
int	getPriority() Getter for the priority ( ordinal value of a priority level )
long	getTimeStamp() Getter for the time stamp ( the number of milliseconds since January 1, 1970, 00:00:00 GMT )
Boolean	isTimeSynced() Getter for the timeSynced
void	setData(SampleData data) Setter for the sample data
boolean	setDataFromXML(String dataType, String xml) Method to create data from XML
void	setDeviceIdentifier(String deviceIdentifier) Setter for the device identifier ( string representation of the sensors identifier )
void	setLocation(GeoLocation location) Setter for the location
boolean	setLocationFromXML(String xml) Method to create location from XML representation
void	setPriority(int priority) Setter for the priority ( ordinal value of a priority level )
void	setTimeStamp(long timeStamp) Setter for the time stamp ( the number of milliseconds since January 1, 1970, 00:00:00 GMT )
void	setTimeSynced(Boolean timeSynced) Setter for the timeSynced
String	toString()
String	toXML() Serialization from the type to it's XML representation

Methods inherited from class java.lang.Object

clone, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

ACTION

public static final String ACTION

Our custom sample intent action

See Also:

Constant Field Values

deviceIdentifier

protected String deviceIdentifier

the sample device identifier

timeStamp

protected long timeStamp

the sample time stamp

priority

private int priority

the sample priority for transmission

timeSynced

private Boolean timeSynced

flag if the sample time stamp is taken while time provider was in sync with NTP time.

data

private SampleData data

The device specific sensor data

location

private GeoLocation location

The associated location

Constructor Detail

BasicSample

public BasicSample()

Constructor

Method Detail

setLocationFromXML

public final boolean setLocationFromXML(String xml)

Method to create location from XML representation

Parameters:

xml - the XML representation of the location

Returns:

true if successful, false otherwise

setDataFromXML

public final boolean setDataFromXML(String dataType,
                                    String xml)

Method to create data from XML

Parameters:

dataType - the data type class name

xml - the XML representation of the data

Returns:

true if successful, false otherwise

equals

public static final boolean equals(Object o1,
                                   Object o2)

Test method for equivalence of two objects, allowing both being null as well

Parameters:

o1 - first object

o2 - second object

Returns:

true if equal pointers or equal values

equals

public final boolean equals(Object o)

Overrides:

equals in class Object

setTimeStamp

public final void setTimeStamp(long timeStamp)

Setter for the time stamp ( the number of milliseconds since January 1, 1970, 00:00:00 GMT )

Parameters:

timeStamp - the time stamp to set

getTimeStamp

public final long getTimeStamp()

Getter for the time stamp ( the number of milliseconds since January 1, 1970, 00:00:00 GMT )

Returns:

the time stamp

isTimeSynced

public Boolean isTimeSynced()

Getter for the timeSynced

Returns:

the timeSynced

setTimeSynced

public void setTimeSynced(Boolean timeSynced)

Setter for the timeSynced

Parameters:

timeSynced - the timeSynced to set

setPriority

public final void setPriority(int priority)

Setter for the priority ( ordinal value of a priority level )

Parameters:

priority - the priority to set

getPriority

public final int getPriority()

Getter for the priority ( ordinal value of a priority level )

Returns:

the priority

getData

public final SampleData getData()

Getter for the sample data

Returns:

the sample data

setData

public final void setData(SampleData data)

Setter for the sample data

Parameters:

data - the sample data to set

setDeviceIdentifier

public final void setDeviceIdentifier(String deviceIdentifier)

Setter for the device identifier ( string representation of the sensors identifier )

Parameters:

deviceIdentifier - the device identifier to set

getDeviceIdentifier

public final String getDeviceIdentifier()

Getter for the device identifier ( string representation of the sensors identifier )

Returns:

the device identifier

setLocation

public void setLocation(GeoLocation location)

Setter for the location

Parameters:

location - the location to set

getLocation

public GeoLocation getLocation()

Getter for the location

Returns:

the location

toString

public final String toString()

Overrides:

toString in class Object

toXML

public final String toXML()
                   throws Exception

Description copied from interface: SerializableData

Serialization from the type to it's XML representation

Specified by:

toXML in interface SerializableData

Returns:

the XML representation of the type if successful, null otherwise

Throws:

Exception - if the schema for the object is not valid
