de.unikassel.android.sdcframework.devices

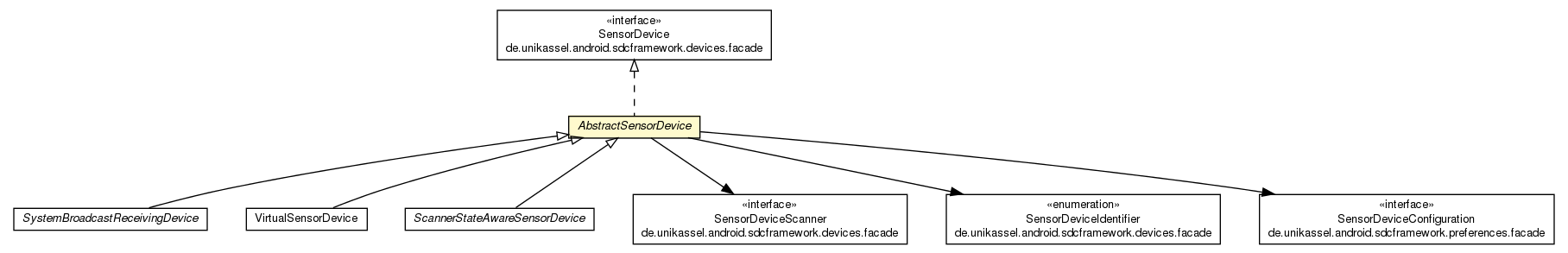

Class AbstractSensorDevice

java.lang.Object
  de.unikassel.android.sdcframework.devices.AbstractSensorDevice

All Implemented Interfaces:

SensorDevice, VisitableDevice

Direct Known Subclasses:

ScannerStateAwareSensorDevice, SystemBroadcastReceivingDevice, VirtualSensorDevice

public abstract class AbstractSensorDevice
extends Object
implements SensorDevice

Base class for any sensor device type.

Field Summary

private SensorDeviceConfiguration	configuration The sensor device configuration
private SensorDeviceIdentifier	deviceIdentifier The sensor device deviceIdentifier
private SensorDeviceScanner	scanner The scanner for the sensor device

Constructor Summary

private	AbstractSensorDevice() Default constructor ( it's private with purpose )
	AbstractSensorDevice(SensorDeviceIdentifier deviceId) Constructor for devices with an Android sub type

Method Summary

boolean	accept(SensorDeviceVisitor visitor) Method to accept a visitor
void	doHandleDeviceDisabledBySystem(Context context) Default handler for the fact, the system device state is changing from enabled to disabled.
void	doHandleDeviceEnabledBySystem(Context context) Default handler for the fact, the system device state is changing from disabled to enabled.
protected abstract void	doSignalDeviceNotEnabledInSystem(Context applicationContext) Method to signal the user that the device is disabled in the system and needed by this service.
boolean	enableDeviceScanning(boolean enabled, Context context) Setter for device scanning enabled state
SensorDeviceConfiguration	getConfiguration() Getter for the sensor device configuration
SensorDeviceIdentifier	getDeviceIdentifier() Getter for the sensors device identifier
SensorDeviceScanner	getScanner() Getter for the scanner
boolean	isAirplaneModeOn(Context applicationContext) Getter for the state of the airplaine mode
boolean	isDeviceScanningEnabled() Getter for device scanning enabled state in the framework
protected abstract void	onConfigurationChanged() Callback to signal configuration of device has changed
void	onCreate(Context context) Is called when this device is created
void	onDestroy(Context context) Is called when the owner destroys this device
private void	setConfiguration(SensorDeviceConfiguration configuration) Setter for the configuration
protected void	setDeviceIdentifier(SensorDeviceIdentifier deviceIdentifier) Setter for the device identifier
void	setScanner(SensorDeviceScanner scanner, Context context) Setter for the scanner
void	updateConfiguration(SensorDeviceConfiguration configuration, Context context) Update method for the device configuration settings

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.unikassel.android.sdcframework.devices.facade.SensorDevice

isDeviceInSystemEnabled

Field Detail

deviceIdentifier

private SensorDeviceIdentifier deviceIdentifier

The sensor device deviceIdentifier

configuration

private SensorDeviceConfiguration configuration

The sensor device configuration

scanner

private SensorDeviceScanner scanner

The scanner for the sensor device

Constructor Detail

AbstractSensorDevice

private AbstractSensorDevice()

Default constructor ( it's private with purpose )

AbstractSensorDevice

public AbstractSensorDevice(SensorDeviceIdentifier deviceId)

Constructor for devices with an Android sub type

Parameters:

deviceId - the device identifier

Method Detail

accept

public final boolean accept(SensorDeviceVisitor visitor)

Description copied from interface: VisitableDevice

Method to accept a visitor

Specified by:

accept in interface VisitableDevice

Parameters:

visitor - the visitor to accept

Returns:

true if visitation has to continue, false otherwise

getDeviceIdentifier

public final SensorDeviceIdentifier getDeviceIdentifier()

Description copied from interface: SensorDevice

Getter for the sensors device identifier

Specified by:

getDeviceIdentifier in interface SensorDevice

Returns:

the sensor device identifier

setDeviceIdentifier

protected final void setDeviceIdentifier(SensorDeviceIdentifier deviceIdentifier)

Setter for the device identifier

Parameters:

deviceIdentifier - the device identifier to set

isDeviceScanningEnabled

public final boolean isDeviceScanningEnabled()

Description copied from interface: SensorDevice

Getter for device scanning enabled state in the framework

Specified by:

isDeviceScanningEnabled in interface SensorDevice

Returns:

true if the device scanning is enabled, false otherwise

enableDeviceScanning

public boolean enableDeviceScanning(boolean enabled,
                                    Context context)

Description copied from interface: SensorDevice

Setter for device scanning enabled state

Specified by:

enableDeviceScanning in interface SensorDevice

Parameters:

enabled - true to enable device scanning, false to disable it

context - the application context

Returns:

true if successful enabled, false otherwise

setConfiguration

private final void setConfiguration(SensorDeviceConfiguration configuration)

Setter for the configuration

Parameters:

configuration - the configuration to set

getConfiguration

public final SensorDeviceConfiguration getConfiguration()

Description copied from interface: SensorDevice

Getter for the sensor device configuration

Specified by:

getConfiguration in interface SensorDevice

Returns:

the sensor device configuration

setScanner

public final void setScanner(SensorDeviceScanner scanner,
                             Context context)

Description copied from interface: SensorDevice

Setter for the scanner

Specified by:

setScanner in interface SensorDevice

Parameters:

scanner - the scanner to set

context - the application context

getScanner

public final SensorDeviceScanner getScanner()

Description copied from interface: SensorDevice

Getter for the scanner

Specified by:

getScanner in interface SensorDevice

Returns:

the scanner

updateConfiguration

public final void updateConfiguration(SensorDeviceConfiguration configuration,
                                      Context context)

Description copied from interface: SensorDevice

Update method for the device configuration settings

Specified by:

updateConfiguration in interface SensorDevice

Parameters:

configuration - the device configuration

context - the application context

onConfigurationChanged

protected abstract void onConfigurationChanged()

Callback to signal configuration of device has changed

onCreate

public void onCreate(Context context)

Description copied from interface: SensorDevice

Is called when this device is created

Specified by:

onCreate in interface SensorDevice

Parameters:

context - the application context

onDestroy

public void onDestroy(Context context)

Description copied from interface: SensorDevice

Is called when the owner destroys this device

Specified by:

onDestroy in interface SensorDevice

Parameters:

context - the application context

isAirplaneModeOn

public boolean isAirplaneModeOn(Context applicationContext)

Getter for the state of the airplaine mode

Parameters:

applicationContext - the application contex

Returns:

true if enabled, false otherwise

doHandleDeviceDisabledBySystem

public final void doHandleDeviceDisabledBySystem(Context context)

Description copied from interface: SensorDevice

Default handler for the fact, the system device state is changing from enabled to disabled.
If the device is enabled in the framework and we are not in airplane mode, than this handler is signaling the user that the device is needed but disabled in the system. If the device scanner was running, it will be stopped.
A sensor device can call this method to proper handle the device is disabled case.

Specified by:

doHandleDeviceDisabledBySystem in interface SensorDevice

Parameters:

context - the application context

doHandleDeviceEnabledBySystem

public final void doHandleDeviceEnabledBySystem(Context context)

Description copied from interface: SensorDevice

Default handler for the fact, the system device state is changing from disabled to enabled.
If the device is enabled in the framework than the device scanner will be started.
A sensor device can call this method to proper handle the device is enabled case.

Specified by:

doHandleDeviceEnabledBySystem in interface SensorDevice

Parameters:

context - the application context

doSignalDeviceNotEnabledInSystem

protected abstract void doSignalDeviceNotEnabledInSystem(Context applicationContext)

Method to signal the user that the device is disabled in the system and needed by this service.
This method is called from the handler doHandleDeviceDisabledBySystem(android.content.Context) to react on system state changes from enabled to disabled.
The implementation depends on the concrete device.

Parameters:

applicationContext - the application context
