de.unikassel.android.sdcframework.devices
Class SampleReceivingDeviceScanner

java.lang.Object
  de.unikassel.android.sdcframework.util.ObservableEventSourceImpl<Sample>
      de.unikassel.android.sdcframework.devices.AbstractSensorDeviceScanner
          de.unikassel.android.sdcframework.devices.SampleReceivingDeviceScanner

All Implemented Interfaces:

SensorDeviceScanner, ObservableEventSource<Sample>, ObserverRegistration<Sample>

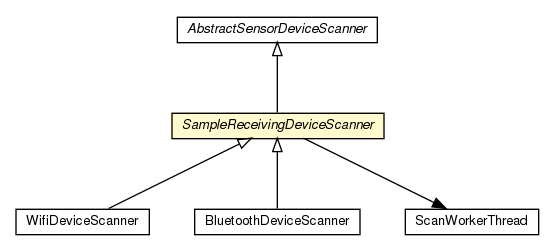

Direct Known Subclasses:

BluetoothDeviceScanner, WifiDeviceScanner

public abstract class SampleReceivingDeviceScanner
extends AbstractSensorDeviceScanner

Abstract base class for scanner types, which do receive sensor data from system broadcasts after the explicit initiation of a system scan.

Such a scanner does run a thread to trigger device scans in the configured frequency and it is using a broadcast receiver to receive the scan results.
Extending classes have to define the related Intent and to implement the handler for received samples, as well as the start and stop methods for the system scan.

See Also:

WifiDeviceScanner, BluetoothDeviceScanner

Nested Class Summary

private class

SampleReceivingDeviceScanner.ScanWorkerThread Inner class for a device polling worker thread

Field Summary

protected AtomicBoolean	lastScanFinished Flag indicating if last scan has finished ( minimal scan frequency is always limited by device speed )
protected BroadcastReceiver	receiver The broadcast receiver for the device scan results
protected SampleReceivingDeviceScanner.ScanWorkerThread	worker the worker thread

Constructor Summary

SampleReceivingDeviceScanner()
Constructor

Method Summary

protected abstract void	doHandleScanResults(Intent intent) Handler for the device scan results
protected abstract boolean	doStartDeviceScan() Method to start a device scan
protected abstract void	doStopDeviceScan() Method to stop a device scan which is called if scanner is stopped while a scan is ongoing
protected abstract IntentFilter	getIntentFilter() Getter for intent filter used by the broadcast receiver
boolean	isLastScanFinished() Getter for the lastScanFinished
void	onDestroy(Context context) Is called when the owner destroys this scanner
private void	registerReceiver(Context context) Does register the broadcast receiver for device scan results
void	setLastScanFinished(boolean lastScanFinished) Setter for the lastScanFinished
boolean	start(Context context) Does start sampling
boolean	stop(Context context) Does stop sampling
private void	unregisterReceiver(Context context) Does unregister the broadcast receiver for device scan results

Methods inherited from class de.unikassel.android.sdcframework.devices.AbstractSensorDeviceScanner

enable, getDevice, isActive, isCompatibleDevice, isEnabled, setActive, setDevice

Methods inherited from class de.unikassel.android.sdcframework.util.ObservableEventSourceImpl

getObservers, hasObservers, notify, onObserverRegistration, onObserverUnregistration, registerEventObserver, removeAllObservers, unregisterEventObserver

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.unikassel.android.sdcframework.util.facade.ObservableEventSource

hasObservers, notify

Methods inherited from interface de.unikassel.android.sdcframework.util.facade.ObserverRegistration

registerEventObserver, removeAllObservers, unregisterEventObserver

Field Detail

receiver

protected final BroadcastReceiver receiver

The broadcast receiver for the device scan results

worker

protected final SampleReceivingDeviceScanner.ScanWorkerThread worker

the worker thread

lastScanFinished

protected AtomicBoolean lastScanFinished

Flag indicating if last scan has finished ( minimal scan frequency is always limited by device speed )

Constructor Detail

SampleReceivingDeviceScanner

public SampleReceivingDeviceScanner()

Constructor

Method Detail

start

public final boolean start(Context context)

Description copied from interface: SensorDeviceScanner

Does start sampling

Parameters:

context - the application context

Returns:

true if successful started, false otherwise

stop

public final boolean stop(Context context)

Description copied from interface: SensorDeviceScanner

Does stop sampling

Parameters:

context - the application context

Returns:

true if successful started, false otherwise

registerReceiver

private final void registerReceiver(Context context)

Does register the broadcast receiver for device scan results

Parameters:

context - the application context

unregisterReceiver

private final void unregisterReceiver(Context context)

Does unregister the broadcast receiver for device scan results

Parameters:

context - the application context

isLastScanFinished

public final boolean isLastScanFinished()

Getter for the lastScanFinished

Returns:

the lastScanFinished

setLastScanFinished

public final void setLastScanFinished(boolean lastScanFinished)

Setter for the lastScanFinished

Parameters:

lastScanFinished - the lastScanFinished to set

onDestroy

public void onDestroy(Context context)

Description copied from interface: SensorDeviceScanner

Is called when the owner destroys this scanner

Specified by:

onDestroy in interface SensorDeviceScanner

Overrides:

onDestroy in class AbstractSensorDeviceScanner

Parameters:

context - the application context

getIntentFilter

protected abstract IntentFilter getIntentFilter()

Getter for intent filter used by the broadcast receiver

Returns:

the intent filter used by the broadcast receiver

doHandleScanResults

protected abstract void doHandleScanResults(Intent intent)

Handler for the device scan results

Parameters:

intent - the broadcast intent to handle

doStartDeviceScan

protected abstract boolean doStartDeviceScan()

Method to start a device scan

Returns:

true if successful, false otherwise

doStopDeviceScan

protected abstract void doStopDeviceScan()

Method to stop a device scan which is called if scanner is stopped while a scan is ongoing
