de.unikassel.android.sdcframework.devices
Class SampleTakingDeviceScanner

java.lang.Object
  de.unikassel.android.sdcframework.util.ObservableEventSourceImpl<Sample>
      de.unikassel.android.sdcframework.devices.AbstractSensorDeviceScanner

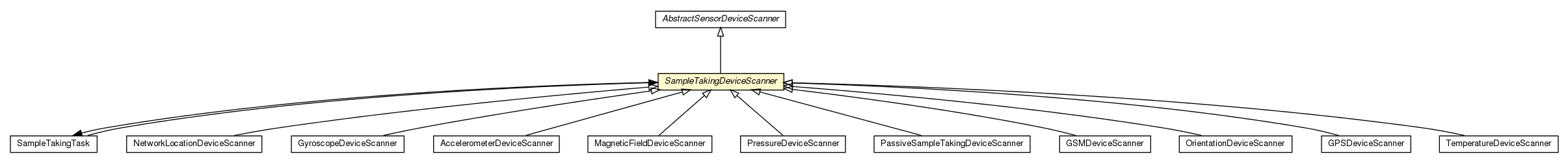

          de.unikassel.android.sdcframework.devices.SampleTakingDeviceScanner

All Implemented Interfaces:

SensorDeviceScanner, ObservableEventSource<Sample>, ObserverRegistration<Sample>

Direct Known Subclasses:

AccelerometerDeviceScanner, GPSDeviceScanner, GSMDeviceScanner, GyroscopeDeviceScanner, MagneticFieldDeviceScanner, NetworkLocationDeviceScanner, OrientationDeviceScanner, PassiveSampleTakingDeviceScanner, PressureDeviceScanner, TemperatureDeviceScanner

public abstract class SampleTakingDeviceScanner
extends AbstractSensorDeviceScanner

Base class for sensor device scanner types, which do active take a sample of the associated device in the configured frequency.

The timing is done by the usage of an OS handler to schedule the timed task.
This scanner is designed to work together with devices implementing the SampleProvidingSensorDevice interface.

See Also:

SampleProvidingSensorDevice, AccelerometerDeviceScanner, GSMDeviceScanner, GPSDeviceScanner

Field Summary

private Handler	handler The handler used for timing instead of a timer object
private SampleTakingTask	timerTask The timer task to be executed on timer event

Constructor Summary

SampleTakingDeviceScanner()
Constructor

Method Summary

protected Handler	getHandler() Getter for the handler
protected SampleTakingTask	getTimerTask() Getter for the timer task
protected boolean	isCompatibleDevice(SensorDevice device) Validation method for a compatible device type
void	onDestroy(Context context) Is called when the owner destroys this scanner
private void	setHandler(Handler handler) Setter for the handler
private void	setTimerTask(SampleTakingTask timerTask) Setter for the timer task
boolean	start(Context context) Does start sampling
boolean	stop(Context context) Does stop sampling
void	takeSample() The cyclic executed method to take a sample from the device

Methods inherited from class de.unikassel.android.sdcframework.devices.AbstractSensorDeviceScanner

enable, getDevice, isActive, isEnabled, setActive, setDevice

Methods inherited from class de.unikassel.android.sdcframework.util.ObservableEventSourceImpl

getObservers, hasObservers, notify, onObserverRegistration, onObserverUnregistration, registerEventObserver, removeAllObservers, unregisterEventObserver

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.unikassel.android.sdcframework.util.facade.ObservableEventSource

hasObservers, notify

Methods inherited from interface de.unikassel.android.sdcframework.util.facade.ObserverRegistration

registerEventObserver, removeAllObservers, unregisterEventObserver

Field Detail

handler

private Handler handler

The handler used for timing instead of a timer object

timerTask

private SampleTakingTask timerTask

The timer task to be executed on timer event

Constructor Detail

SampleTakingDeviceScanner

public SampleTakingDeviceScanner()

Constructor

Method Detail

isCompatibleDevice

protected boolean isCompatibleDevice(SensorDevice device)

Description copied from class: AbstractSensorDeviceScanner

Validation method for a compatible device type

Specified by:

isCompatibleDevice in class AbstractSensorDeviceScanner

Parameters:

device - the device to test for compatibility

takeSample

public void takeSample()

The cyclic executed method to take a sample from the device

getHandler

protected final Handler getHandler()

Getter for the handler

Returns:

the handler

setHandler

private final void setHandler(Handler handler)

Setter for the handler

Parameters:

handler - the handler to set

getTimerTask

protected final SampleTakingTask getTimerTask()

Getter for the timer task

Returns:

the timer task

setTimerTask

private final void setTimerTask(SampleTakingTask timerTask)

Setter for the timer task

Parameters:

timerTask - the timer task to set

start

public boolean start(Context context)

Description copied from interface: SensorDeviceScanner

Does start sampling

Parameters:

context - the application context

Returns:

true if successful started, false otherwise

stop

public boolean stop(Context context)

Description copied from interface: SensorDeviceScanner

Does stop sampling

Parameters:

context - the application context

Returns:

true if successful started, false otherwise

onDestroy

public void onDestroy(Context context)

Description copied from interface: SensorDeviceScanner

Is called when the owner destroys this scanner

Specified by:

onDestroy in interface SensorDeviceScanner

Overrides:

onDestroy in class AbstractSensorDeviceScanner

Parameters:

context - the application context
