de.unikassel.android.sdcframework.transmission
Class AbstractProtocol

java.lang.Object
  de.unikassel.android.sdcframework.transmission.AbstractProtocol

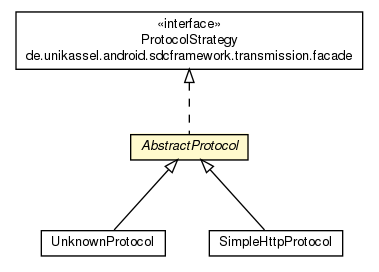

All Implemented Interfaces:

ProtocolStrategy, UpdatableTransmissionComponent<TransmissionProtocolConfiguration>

Direct Known Subclasses:

SimpleHttpProtocol, UnknownProtocol

public abstract class AbstractProtocol
extends Object
implements ProtocolStrategy

Abstract base class for protocol types.

Field Summary

private String	authPassword The password for authentication
protected Context	context the application context to use
static String	FILE_NOT_FOUND The file not found message
private String	fileName The current file to upload
static String	INVALID_URL The invalid URL message
protected String	lastError The last error message
static String	UNKNOWN_PROTCOL The unknown protocol message
private URL	url The URL to upload files to
private String	userName The user name for authentication
private UUID	uuid The unique SDC installation identifier for this device

Constructor Summary

AbstractProtocol(Context context, UUID uuid, TransmissionProtocolConfiguration config)
Constructor

Method Summary

protected void	doHandleError(String errorMsg) Error handler
protected abstract boolean	doUploadFile(File file) Does upload a file according to the concrete protocol
protected String	getAuthPassword() Getter for the authPassword
Context	getContext() Getter for the application context
String	getFileName() Getter for name of the file to upload
String	getHost() Getter for the host
String	getLastError() Getter for the last error
protected String	getMd5Password() Getter for the authPassword
URL	getURL() Getter for the URL
protected String	getUserName() Getter for the userName
protected UUID	getUuid() Getter for the uuid
void	setFileName(String fileName) Setter for the file to upload
void	setLastError(String lastError) Setter for the last error
protected void	setURL(URL url) Setter for the url
void	updateConfiguration(Context context, TransmissionProtocolConfiguration config) Method to update the component by a configuration
boolean	uploadFile() Does upload the current file set

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

FILE_NOT_FOUND

public static final String FILE_NOT_FOUND

The file not found message

See Also:

Constant Field Values

INVALID_URL

public static final String INVALID_URL

The invalid URL message

See Also:

Constant Field Values

UNKNOWN_PROTCOL

public static final String UNKNOWN_PROTCOL

The unknown protocol message

See Also:

Constant Field Values

url

private URL url

The URL to upload files to

userName

private String userName

The user name for authentication

authPassword

private String authPassword

The password for authentication

fileName

private String fileName

The current file to upload

context

protected final Context context

the application context to use

uuid

private final UUID uuid

The unique SDC installation identifier for this device

lastError

protected String lastError

The last error message

Constructor Detail

AbstractProtocol

public AbstractProtocol(Context context,
                        UUID uuid,
                        TransmissionProtocolConfiguration config)

Constructor

Parameters:

context - the context

uuid - the unique SDC installation identifier for this device

config - the current transmission configuration

Method Detail

getURL

public final URL getURL()

Description copied from interface: ProtocolStrategy

Getter for the URL

Specified by:

getURL in interface ProtocolStrategy

Returns:

the URL

getHost

public final String getHost()

Description copied from interface: ProtocolStrategy

Getter for the host

Specified by:

getHost in interface ProtocolStrategy

Returns:

the host if url is valid, otherwise null

setURL

protected final void setURL(URL url)

Setter for the url

Parameters:

url - the url to set

getUserName

protected final String getUserName()

Getter for the userName

Returns:

the userName

getAuthPassword

protected final String getAuthPassword()

Getter for the authPassword

Returns:

the authPassword

getMd5Password

protected final String getMd5Password()

Getter for the authPassword

Returns:

the authPassword

getContext

public final Context getContext()

Description copied from interface: ProtocolStrategy

Getter for the application context

Specified by:

getContext in interface ProtocolStrategy

Returns:

the application context

getUuid

protected UUID getUuid()

Getter for the uuid

Returns:

the uuid

setFileName

public final void setFileName(String fileName)

Description copied from interface: ProtocolStrategy

Setter for the file to upload

Specified by:

setFileName in interface ProtocolStrategy

Parameters:

fileName - the name of the file to upload

getFileName

public final String getFileName()

Description copied from interface: ProtocolStrategy

Getter for name of the file to upload

Specified by:

getFileName in interface ProtocolStrategy

Returns:

the file to upload

setLastError

public final void setLastError(String lastError)

Description copied from interface: ProtocolStrategy

Setter for the last error

Specified by:

setLastError in interface ProtocolStrategy

Parameters:

lastError - the laste error to set

getLastError

public final String getLastError()

Description copied from interface: ProtocolStrategy

Getter for the last error

Specified by:

getLastError in interface ProtocolStrategy

Returns:

the last error description or null if no error did occur

updateConfiguration

public final void updateConfiguration(Context context,
                                      TransmissionProtocolConfiguration config)

Description copied from interface: UpdatableTransmissionComponent

Method to update the component by a configuration

Specified by:

updateConfiguration in interface UpdatableTransmissionComponent<TransmissionProtocolConfiguration>

Parameters:

context - the application context

config - the configuration to update from

uploadFile

public final boolean uploadFile()

Description copied from interface: ProtocolStrategy

Does upload the current file set

Specified by:

uploadFile in interface ProtocolStrategy

Returns:

true if successful, flase otherwise

doHandleError

protected final void doHandleError(String errorMsg)

Error handler

Parameters:

errorMsg - the error massage

doUploadFile

protected abstract boolean doUploadFile(File file)

Does upload a file according to the concrete protocol

Parameters:

file - the file for upload

Returns:

true if successful, false otherwise ( last error will be set in this case )
