de.unikassel.android.sdcframework.devices
Class AbstractAndroidSensorDevice

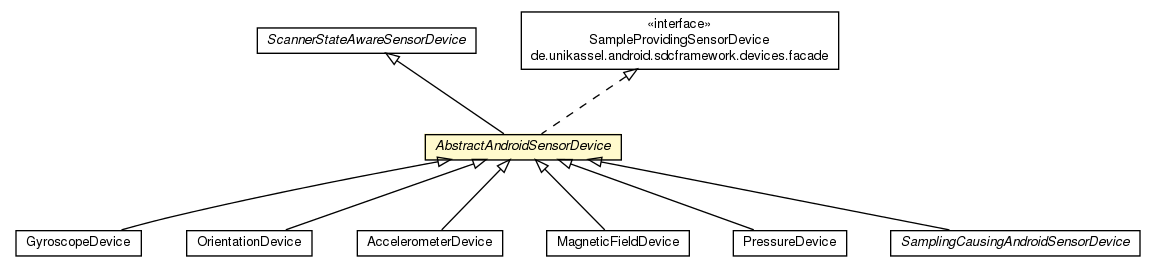

java.lang.Object
  de.unikassel.android.sdcframework.devices.AbstractSensorDevice
      de.unikassel.android.sdcframework.devices.ScannerStateAwareSensorDevice
          de.unikassel.android.sdcframework.devices.AbstractAndroidSensorDevice

All Implemented Interfaces:

SampleProvidingSensorDevice, SensorDevice, VisitableDevice

Direct Known Subclasses:

AccelerometerDevice, GyroscopeDevice, MagneticFieldDevice, OrientationDevice, PressureDevice, SamplingCausingAndroidSensorDevice

public abstract class AbstractAndroidSensorDevice
extends ScannerStateAwareSensorDevice
implements SampleProvidingSensorDevice

Base class for an Android Sensor type.

Does provide the sensor listener and the logic for listener registration depending on the scanner running state. Any extending class has just to implement the abstract handler methods for sensor changes and the methods from the SampleProvidingSensorDevice interface.

See Also:

AccelerometerDevice

Field Summary

private Sensor	sensor The corresponding Android sensor
private int	sensorDelay The sensor delay
private SensorEventListener	sensorListener The sensor listener

Constructor Summary

AbstractAndroidSensorDevice(SensorDeviceIdentifier deviceId, int androidSensorType, Context context, int sensorDelay)
Constructor

Method Summary

protected void	doHandleSensorAccuracyChanged(Sensor sensor, int accuracy) Handler for the sensor accuracy changed event
protected abstract void	doHandleSensorChanged(SensorEvent event) Handler for the sensor changed event ( with incoming updated sensor data )
protected void	doSignalDeviceNotEnabledInSystem(Context applicationContext) Method to signal the user that the device is disabled in the system and needed by this service.
protected abstract SampleData	getCurrentSampleData() Getter for the current sample data
SensorEventListener	getListener() Getter for the sensor listener
Sample	getSample() Getter for a device sample
Sensor	getSensor() Getter for the sensor
boolean	isDeviceInSystemEnabled(Context context) Test method for the system wide enabled state of the device
protected void	onScannerRunningStateChange(boolean isRunning, Context context) Handler to react on scanner state changes.
private void	registerListener(Context context) Does register the sensor listener for the device type
private void	setListener(SensorEventListener sensorListener) Setter for the sensor event listener
private void	unregisterListener(Context context) Does unregister the sensor listener for the device type

Methods inherited from class de.unikassel.android.sdcframework.devices.ScannerStateAwareSensorDevice

enableDeviceScanning, onConfigurationChanged

Methods inherited from class de.unikassel.android.sdcframework.devices.AbstractSensorDevice

accept, doHandleDeviceDisabledBySystem, doHandleDeviceEnabledBySystem, getConfiguration, getDeviceIdentifier, getScanner, isAirplaneModeOn, isDeviceScanningEnabled, onCreate, onDestroy, setDeviceIdentifier, setScanner, updateConfiguration

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.unikassel.android.sdcframework.devices.facade.SampleProvidingSensorDevice

hasSample

Field Detail

sensorListener

private SensorEventListener sensorListener

The sensor listener

sensor

private final Sensor sensor

The corresponding Android sensor

sensorDelay

private final int sensorDelay

The sensor delay

Constructor Detail

AbstractAndroidSensorDevice

public AbstractAndroidSensorDevice(SensorDeviceIdentifier deviceId,
                                   int androidSensorType,
                                   Context context,
                                   int sensorDelay)
                            throws InvalidParameterException

Constructor

Parameters:

deviceId - the device identifier

androidSensorType - the Android sensor type

context - the application context

sensorDelay - the sensor delay

Throws:

InvalidParameterException - if sensor type is unavailable or unknown

Method Detail

setListener

private final void setListener(SensorEventListener sensorListener)

Setter for the sensor event listener

Parameters:

sensorListener - the sensor event listener

getListener

public final SensorEventListener getListener()

Getter for the sensor listener

Returns:

the sensor listener

getSensor

public final Sensor getSensor()

Getter for the sensor

Returns:

the sensor

isDeviceInSystemEnabled

public final boolean isDeviceInSystemEnabled(Context context)

Description copied from interface: SensorDevice

Test method for the system wide enabled state of the device

Specified by:

isDeviceInSystemEnabled in interface SensorDevice

Parameters:

context - the application context

Returns:

true if device is enabled in system, false otherwise

doSignalDeviceNotEnabledInSystem

protected final void doSignalDeviceNotEnabledInSystem(Context applicationContext)

Description copied from class: AbstractSensorDevice

Method to signal the user that the device is disabled in the system and needed by this service.
This method is called from the handler AbstractSensorDevice.doHandleDeviceDisabledBySystem(android.content.Context) to react on system state changes from enabled to disabled.
The implementation depends on the concrete device.

Specified by:

doSignalDeviceNotEnabledInSystem in class AbstractSensorDevice

Parameters:

applicationContext - the application context

registerListener

private final void registerListener(Context context)

Does register the sensor listener for the device type

Parameters:

context - the application context

unregisterListener

private final void unregisterListener(Context context)

Does unregister the sensor listener for the device type

Parameters:

context - the application context

onScannerRunningStateChange

protected final void onScannerRunningStateChange(boolean isRunning,
                                                 Context context)

Description copied from class: ScannerStateAwareSensorDevice

Handler to react on scanner state changes. It is called after each state change and signals the new running state

Specified by:

onScannerRunningStateChange in class ScannerStateAwareSensorDevice

Parameters:

isRunning - the current scanner state after state change

context - the context

doHandleSensorChanged

protected abstract void doHandleSensorChanged(SensorEvent event)

Handler for the sensor changed event ( with incoming updated sensor data )

Parameters:

event - the sensor event to handle

doHandleSensorAccuracyChanged

protected void doHandleSensorAccuracyChanged(Sensor sensor,
                                             int accuracy)

Handler for the sensor accuracy changed event

Parameters:

sensor - the sensor

accuracy - the accuracy

getSample

public final Sample getSample()

Description copied from interface: SampleProvidingSensorDevice

Getter for a device sample

Specified by:

getSample in interface SampleProvidingSensorDevice

Returns:

a sample of the device

getCurrentSampleData

protected abstract SampleData getCurrentSampleData()

Getter for the current sample data

Returns:

the current sample data
