de.unikassel.android.sdcframework.devices

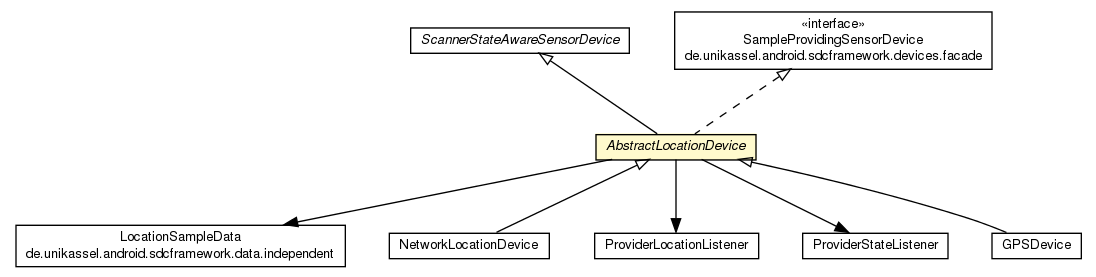

Class AbstractLocationDevice

java.lang.Object
  de.unikassel.android.sdcframework.devices.AbstractSensorDevice
      de.unikassel.android.sdcframework.devices.ScannerStateAwareSensorDevice
          de.unikassel.android.sdcframework.devices.AbstractLocationDevice

All Implemented Interfaces:

SampleProvidingSensorDevice, SensorDevice, VisitableDevice

Direct Known Subclasses:

GPSDevice, NetworkLocationDevice

public abstract class AbstractLocationDevice
extends ScannerStateAwareSensorDevice
implements SampleProvidingSensorDevice

Implementation of an abstract location provider based sensor device as sample providing device.

See Also:

ScannerStateAwareSensorDevice, SampleProvidingSensorDevice

Nested Class Summary

private class	AbstractLocationDevice.ProviderLocationListener Internal location listener implementation
private class	AbstractLocationDevice.ProviderStateListener Internal location provider state listener implementation

Field Summary

private Context	context The service application context
private LocationSampleData	currentSampleData The current available sample
private boolean	isLocationListenerRegistered Flag if location listener is registered
private boolean	isStateListenerRegistered Flag if state listener is registered
private AbstractLocationDevice.ProviderLocationListener	locationListener The GPS location listener used for sampling
private static int	LOWER_FREQUENCY The lower frequency to avoid battery drain
private String	provider The location provider
private AbstractLocationDevice.ProviderStateListener	stateListener The GPS state listener used for adding/removal of location listener

Constructor Summary

AbstractLocationDevice(Context context, SensorDeviceIdentifier id, String provider)
Constructor

Method Summary

void	doHandleLocationChanged(Location location) Handler for the location changed event
protected void	doSignalDeviceNotEnabledInSystem(Context applicationContext) Method to signal the user that the device is disabled in the system and needed by this service.
private Context	getContext() Getter for the context
protected abstract SampleData	getCurrentSampleData() Method to get the current sample data
protected abstract int	getDeviceDisabledMessageID() Method to get the device disabled message
protected LocationSampleData	getLocationData() Getter for the currentSampleData
private AbstractLocationDevice.ProviderLocationListener	getLocationListener() Getter for the locationListener
private LocationManager	getLocationManager() Getter for the locationManager
protected int	getLowerFrequency() The minimum frequency for location updates
protected float	getMinDistance() The minimum distance in meters for location updates
Sample	getSample() Getter for a device sample
private AbstractLocationDevice.ProviderStateListener	getStateListener() Getter for the stateListener
boolean	hasSample() Test method for a sample available
boolean	isAirplaneModeOn(Context applicationContext) Getter for the state of the airplaine mode
boolean	isDeviceInSystemEnabled(Context context) Test method for the system wide enabled state of the device
boolean	isLocationListenerRegistered() Getter for the isLocationListenerRegistered flag
boolean	isStateListenerRegistered() Getter for the isStateListenerRegistered flag
protected void	onConfigurationChanged() Callback to signal configuration of device has changed
void	onCreate(Context context) Is called when this device is created
void	onDestroy(Context context) Is called when the owner destroys this device
protected void	onScannerRunningStateChange(boolean isRunning, Context context) Handler to react on scanner state changes.
private void	registerLocationListener() Does register the location listener
private void	registerStateListener() Does register the GPS state listener
private void	setContext(Context context) Setter for the context
private void	setLocationListener(AbstractLocationDevice.ProviderLocationListener locationListener) Setter for the locationListener
private void	setLocationListenerRegistered(boolean isLocationListenerRegistered) Setter for the isLocationListenerRegistered flag
private void	setStateListener(AbstractLocationDevice.ProviderStateListener stateListener) Setter for the stateListener
void	setStateListenerRegistered(boolean isStateListenerRegistered) Setter for the isStateListenerRegistered flag
private void	unregisterLocationListener() Does unregister the location listener
private void	unregisterStateListener() Does unregister the GPS state listener

Methods inherited from class de.unikassel.android.sdcframework.devices.ScannerStateAwareSensorDevice

enableDeviceScanning

Methods inherited from class de.unikassel.android.sdcframework.devices.AbstractSensorDevice

accept, doHandleDeviceDisabledBySystem, doHandleDeviceEnabledBySystem, getConfiguration, getDeviceIdentifier, getScanner, isDeviceScanningEnabled, setDeviceIdentifier, setScanner, updateConfiguration

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

LOWER_FREQUENCY

private static final int LOWER_FREQUENCY

The lower frequency to avoid battery drain

See Also:

Constant Field Values

context

private Context context

The service application context

locationListener

private AbstractLocationDevice.ProviderLocationListener locationListener

The GPS location listener used for sampling

stateListener

private AbstractLocationDevice.ProviderStateListener stateListener

The GPS state listener used for adding/removal of location listener

currentSampleData

private final LocationSampleData currentSampleData

The current available sample

isLocationListenerRegistered

private boolean isLocationListenerRegistered

Flag if location listener is registered

isStateListenerRegistered

private boolean isStateListenerRegistered

Flag if state listener is registered

provider

private final String provider

The location provider

Constructor Detail

AbstractLocationDevice

public AbstractLocationDevice(Context context,
                              SensorDeviceIdentifier id,
                              String provider)

Constructor

Parameters:

context - the context

id - the sensor device identifier

provider - the network provider

Method Detail

setContext

private final void setContext(Context context)

Setter for the context

Parameters:

context - the context to set

getContext

private final Context getContext()

Getter for the context

Returns:

the context

getLocationManager

private final LocationManager getLocationManager()

Getter for the locationManager

Returns:

the locationManager

getLocationListener

private final AbstractLocationDevice.ProviderLocationListener getLocationListener()

Getter for the locationListener

Returns:

the locationListener

setLocationListener

private final void setLocationListener(AbstractLocationDevice.ProviderLocationListener locationListener)

Setter for the locationListener

Parameters:

locationListener - the locationListener to set

setStateListener

private final void setStateListener(AbstractLocationDevice.ProviderStateListener stateListener)

Setter for the stateListener

Parameters:

stateListener - the stateListener to set

getStateListener

private final AbstractLocationDevice.ProviderStateListener getStateListener()

Getter for the stateListener

Returns:

the stateListener

isLocationListenerRegistered

public final boolean isLocationListenerRegistered()

Getter for the isLocationListenerRegistered flag

Returns:

the isLocationListenerRegistered flag

setLocationListenerRegistered

private final void setLocationListenerRegistered(boolean isLocationListenerRegistered)

Setter for the isLocationListenerRegistered flag

Parameters:

isLocationListenerRegistered - the isLocationListenerRegistered flag to set

isStateListenerRegistered

public boolean isStateListenerRegistered()

Getter for the isStateListenerRegistered flag

Returns:

the isStateListenerRegistered flag

setStateListenerRegistered

public void setStateListenerRegistered(boolean isStateListenerRegistered)

Setter for the isStateListenerRegistered flag

Parameters:

isStateListenerRegistered - the isStateListenerRegistered flag to set

registerLocationListener

private final void registerLocationListener()

Does register the location listener

getLowerFrequency

protected int getLowerFrequency()

The minimum frequency for location updates

Returns:

the minimum frequency for location updates

getMinDistance

protected float getMinDistance()

The minimum distance in meters for location updates

Returns:

the minimum distance in meters

unregisterLocationListener

private final void unregisterLocationListener()

Does unregister the location listener

registerStateListener

private final void registerStateListener()

Does register the GPS state listener

unregisterStateListener

private final void unregisterStateListener()

Does unregister the GPS state listener

doHandleLocationChanged

public final void doHandleLocationChanged(Location location)

Handler for the location changed event

Parameters:

location - the changed location

isDeviceInSystemEnabled

public final boolean isDeviceInSystemEnabled(Context context)

Description copied from interface: SensorDevice

Test method for the system wide enabled state of the device

Specified by:

isDeviceInSystemEnabled in interface SensorDevice

Parameters:

context - the application context

Returns:

true if device is enabled in system, false otherwise

doSignalDeviceNotEnabledInSystem

protected final void doSignalDeviceNotEnabledInSystem(Context applicationContext)

Description copied from class: AbstractSensorDevice

Method to signal the user that the device is disabled in the system and needed by this service.
This method is called from the handler AbstractSensorDevice.doHandleDeviceDisabledBySystem(android.content.Context) to react on system state changes from enabled to disabled.
The implementation depends on the concrete device.

Specified by:

doSignalDeviceNotEnabledInSystem in class AbstractSensorDevice

Parameters:

applicationContext - the application context

onScannerRunningStateChange

protected final void onScannerRunningStateChange(boolean isRunning,
                                                 Context context)

Description copied from class: ScannerStateAwareSensorDevice

Handler to react on scanner state changes. It is called after each state change and signals the new running state

Specified by:

onScannerRunningStateChange in class ScannerStateAwareSensorDevice

Parameters:

isRunning - the current scanner state after state change

context - the context

onConfigurationChanged

protected final void onConfigurationChanged()

Description copied from class: AbstractSensorDevice

Callback to signal configuration of device has changed

Overrides:

onConfigurationChanged in class ScannerStateAwareSensorDevice

onCreate

public final void onCreate(Context context)

Description copied from interface: SensorDevice

Is called when this device is created

Specified by:

onCreate in interface SensorDevice

Overrides:

onCreate in class AbstractSensorDevice

Parameters:

context - the application context

onDestroy

public final void onDestroy(Context context)

Description copied from interface: SensorDevice

Is called when the owner destroys this device

Specified by:

onDestroy in interface SensorDevice

Overrides:

onDestroy in class AbstractSensorDevice

Parameters:

context - the application context

isAirplaneModeOn

public final boolean isAirplaneModeOn(Context applicationContext)

Description copied from class: AbstractSensorDevice

Getter for the state of the airplaine mode

Overrides:

isAirplaneModeOn in class AbstractSensorDevice

Parameters:

applicationContext - the application contex

Returns:

true if enabled, false otherwise

hasSample

public boolean hasSample()

Description copied from interface: SampleProvidingSensorDevice

Test method for a sample available

Specified by:

hasSample in interface SampleProvidingSensorDevice

Returns:

true if a sample is available

getLocationData

protected LocationSampleData getLocationData()

Getter for the currentSampleData

Returns:

the currentSampleData

getSample

public final Sample getSample()

Description copied from interface: SampleProvidingSensorDevice

Getter for a device sample

Specified by:

getSample in interface SampleProvidingSensorDevice

Returns:

a sample of the device

getCurrentSampleData

protected abstract SampleData getCurrentSampleData()

Method to get the current sample data

Returns:

the current sample data

getDeviceDisabledMessageID

protected abstract int getDeviceDisabledMessageID()

Method to get the device disabled message

Returns:

the device disabled message
